RoutePay Payment API

Welcome to the RoutePay Developer Portal.

Use this space to describe your platform at a high level: what it does, who it's for, and how the API fits into your product.

Getting started

Create a RoutePay account

Sign up on the RoutePay merchant portal and complete any required KYC so you can generate API credentials.

Obtain your API credentials

From the dashboard, generate your Client ID and Client Secret. Store them securely; you’ll use them to request an access token.

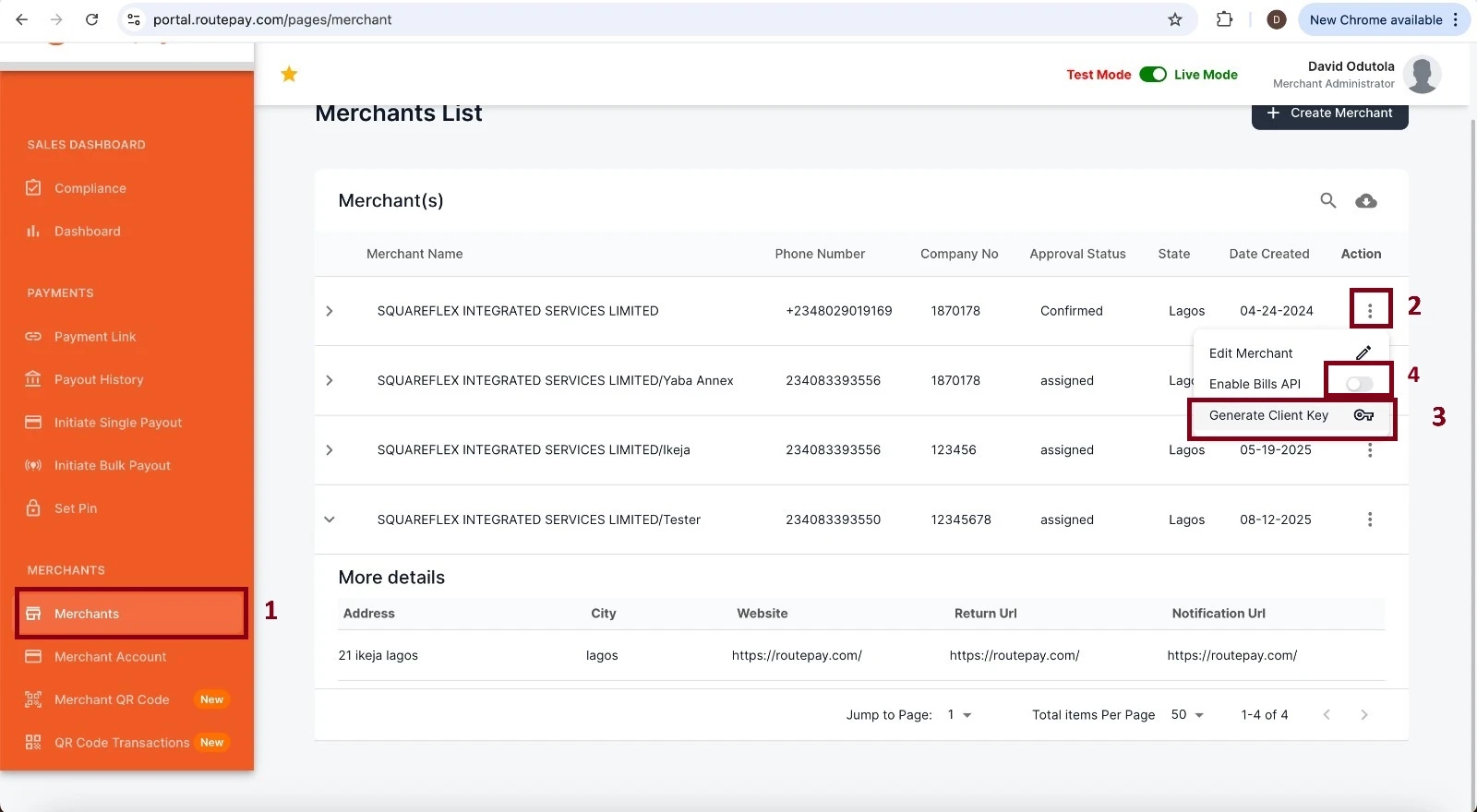

  • Log in to the RoutePay Merchant Portal.

  • Navigate to the Merchants section to view the list of all merchants.

  • Select the merchant for which you want to create an application.

  • Click the three-dots menu (⋮) next to the merchant.

  • Choose “Generate Client Secret” from the dropdown options.

  • The system will generate a ClientId and ClientSecret.

  • Copy and store these credentials securely — they are required for API integration.

drawing

Authenticate with the API

Use the Authentication endpoint to exchange your client credentials for an access_token:

POST https://auth{{Env}}.routepay.com/connect/token Content-Type: application/x-www-form-urlencoded

You can always jump into the full API reference for more details.

Common headers & conventions

  • Use Content-Type: application/json for JSON payloads.
  • Include Authorization: Bearer {{access_token}} for protected endpoints.
  • Use merchantReference and transactionReference in your system to correlate requests and responses.
  • Confirm successful payment using both HTTP 200 and payment-specific status values

Payment flow

Create payment (SetRequest)

Endpoint: POST {{baseUrl}}/payment/api/v1/Payment/SetRequest

POST {{baseUrl}}/payment/api/v1/Payment/SetRequest

Content-Type: application/json

Authorization: Bearer {access_token}

Request body example

{
  "merchantId": "{{ClientId}}",
  "returnUrl": "https://merchant.example.com/return",
  "merchantReference": "A1B2",
  "totalAmount": "500",
  "currency": "NGN",
  "paymentType": "PAYMENT",
  "customer": {
    "email": "test@example.com",
    "mobile": "0800000000",
    "firstname": "John",
    "lastname": "Doe",
    "username": "jdoe"
  },
  "products": [
    {
      "name": "product1",
      "unitPrice": "100",
      "quantity": 1
    }
  ]
}

Response sample

{
    "redirectUrl": "https://paymentqa.routepay.com/pay/2026020805182747256",
    "transactionReference": "2026020805182747256",
    "merchantReference": "2cf5ab3d-8366-4376-80c7-49e8a5fc3735",
    "responseCode": "00",
    "responseMessage": "success"
}

Redirect / Hosted payment page

Client should redirect the user to redirectUrl to complete the hosted payment flow (card checkout). The hosted page will handle card acceptance or other enabled payment methods.

Query transaction status

Endpoint: GET {{baseUrl}}/payment/api/v1/Payment/GetTransaction/{transactionReference}

Purpose: confirm final payment status. Rely on both the HTTP response and the paymentStatus in the response body.

Payment status codes

Status CodeMeaning
0Successful
550Failed
250Pending
260Processing
210Already Processed
220Cancelled

Error handling and idempotency

Treat non-2xx HTTP responses as errors. Log the full response and x-correlation-id (when present) for debugging.

Use merchantReference or transactionReference as idempotency keys on your side to prevent duplicate processing. The API will return AlreadyProcessed for duplicates in some flows.

If the payment returns an intermediate state (e.g., Pending/Processing), poll GetTransaction and avoid returning final confirmation to end-users until you see Successful or Failed.

Testing / Sandbox card data

Payment Approved: 5060990580000217498 — Expiry 05/2050, CVV 123

Payment Declined: 4242 4242 4242 4242 — Expiry 05/2050, CVV 123

Bills Payment flow

RoutePay exposes {{baseUrl}}/bills/api/v1/Payment/lookup and {{baseUrl}}/bills/api/v1/Payment/charge for operator lookups and charges.

You will need to enable the Bills Payment API feature from your merchant kebab menu.

Lookup (product info / bundle list)

Endpoint: POST {{baseUrl}}/bills/api/v1/Payment/lookup Checkout the API reference for full collection and examples

Common request body

{
  "billCode": "AIRTEL_BUNDLE",
  "payload": {}
}

Charge (execute payment)

Endpoint: POST {{baseUrl}}/bills/api/v1/Payment/charge

POST {{baseUrl}}/bills/api/v1/Payment/charge

Content-Type: application/json

Authorization: Bearer {access_token}

Request body example (airtime):

{
  "billCode": "AIRTEL",
  "merchantReference": "{{$guid}}",
  "transactionReference": "",
  "paymentMode": "purse",
  "externalReference": "6747843745",
  "payload": {
    "mobileNumber": "08077722222",
    "amount": "100"
  }
}

Response sample

{
  "status": 200,
  "responseCode": "00",
  "responseDescription": "Successful",
  "billsReference": "4664683003593395673",
  "merchantReference": "08979013-07ea-4d29-abe2-28838bcb4541"
}

Payout API

The Subaccounts API provides endpoints for creating and managing sub-accounts, checking balances, retrieving transaction history, and performing payouts or debits. All requests require JSON request bodies and return JSON responses.

Base URL: /api/v1/Subaccounts

Create Subaccount

POST /api/v1/Subaccounts

Description: Creates a new subaccount for a merchant user.

Request Body

{
  "merchantId": "string",
  "userId": "string",
  "accountName": "string",
  "bvn": "string",
  "alias": "string"
}

Response Sample

{
  "userId": "string",
  "accountName": "string",
  "accountNumber": "string",
  "status": "string",
  "responseCode": "string"
}

Error (400 – Bad Request):

{
  "isSuccess": false,
  "error": "string",
  "message": "string",
  "responseCode": "string"
}

Get Subaccount Details

GET /api/v1/Subaccounts/{id}

Path Parameter:

id (string, required) — Subaccount ID.

Response

{
  "isSuccess": true,
  "error": "string",
  "message": "string",
  "responseCode": "string",
  "value": {
    "accountName": "string",
    "accountNumber": "string",
    "availableBalance": 0,
    "currency": "string",
    "created": "2025-08-18T20:54:45.086Z"
  }
}

Get Subaccount Balance

GET /api/v1/Subaccounts/{accountNumber}/balance

Path Parameter: accountNumber (string, required) — Subaccount Number.

Response

{
  "isSuccess": true,
  "error": "string",
  "message": "string",
  "responseCode": "string",
  "value": {
    "accountName": "string",
    "accountNumber": "string",
    "availableBalance": 0,
    "currency": "string",
    "created": "2025-08-18T20:54:45.086Z"
  }
}

Get Transaction History

POST /api/v1/Subaccounts/{id}/GetTransactionHistory

Path Parameter: id (string, required) — Subaccount Number.

Request Body

{
  "endDate": "string",
  "startDate": "string",
  "merchantId": "string",
  "accountNumber": "string",
  "pageSize": 0,
  "pageNumber": 0,
  "disablePagination": true
}

Response

{
  "isSuccess": true,
  "error": "string",
  "message": "string",
  "responseCode": "string",
  "value": {
    "accountName": "string",
    "accountNumber": "string",
    "availableBalance": 0,
    "currency": "string",
    "created": "2025-08-18T20:54:45.090Z"
  }
}

Payouts

Transfer Funds

POST /api/v1/Subaccounts/{accountNumber}/payouts

Path Parameter: accountNumber (string, required) — Merchant AccountNumber.

Request Body

{
  "transferNarration": "string",
  "beneficiaryAccountNumber": "string",
  "beneficiaryAccountName": "string",
  "bankCode": "string",
  "bankName": "string",
  "amount": 0,
  "merchantReference": "string"
}

Response Body

{
  "isSuccess": true,
  "message": "Transfer successful",
  "responseCode": "00"
}

Debits

POST /api/v1/Subaccounts/{accountNumber}/debits

Path Parameter: accountNumber (string, required) — Subaccount Number.

Request Body

{
  "transferNarration": "string",
  "amount": 0,
  "transferReference": "string"
}

Response Body

{
  "isSuccess": true,
  "message": "Debit successful",
  "responseCode": "00"
}

This API generates a customized QR code for a payment request to a merchant. The QR code can be scanned by customers to initiate and complete payment.

Endpoint

Post: {baseurl}/api/v1/QRCode/GenerateCustomizedQRDynamicPaymentLink Authentication Type: Bearer Token (JWT) Header: Authorization: Bearer <your_access_token>

Request Format

The API accepts a multipart/form-data payload.

Parameters

FieldTypeRequiredDescription
dynamicNamestringYesA dynamic identifier for the QR code (e.g., customer name, label).
amountdecimalYesThe payment amount to be linked to the QR code.
durationInSecondsnumberYesExpiry duration of the QR code in seconds (e.g., 259200 = 3 days).
merchantReferencestringYesMerchant’s unique reference for tracking the transaction.
merchantLogofileYesMerchant’s logo image (must be PNG format).
returnUrlstringYesThe callback URL to redirect after payment is completed.
verifyMebooleanNoFlag to enable extra verification on the payer (default: true).

Example curl Request

curl --location '{baseurl}/api/v1/QRCode/GenerateCustomizedQRDynamicPaymentLink' \
--header 'Authorization: Bearer <your_access_token>' \
--form 'DynamicName="Rli"' \
--form 'Amount="2500"' \
--form 'DurationInSeconds="259200"' \
--form 'MerchantReference="INV-20251001-1246"' \
--form 'MerchantLogo=@"///Mac/Home/Downloads/download.png"' \
--form 'ReturnUrl="https://routepay.com "' \
--form 'VerifyMe="true"'

Response

{
  "value": {
    "qrCode": "https://staging.qr.routepay.com/QrCodes/images/175940007568de508b0c114.png",
    "transactionReference": "2025100211141581551"
  },
  "isSuccess": true,
  "error": "",
  "message": null,
  "responseCode": null
}

Response Fields

FieldTypeDescription
value.qrCodestringURL link to the generated QR code image (PNG).
value.transactionReferencestringUnique reference ID for the generated payment transaction.
isSuccessbooleanIndicates if the request was processed successfully.
errorstringError message if the request failed.
messagestringAdditional message details.
responseCodestringResponse code.

Error Responses

CodeDescription
400Bad request (missing/invalid parameters).
401Unauthorized (invalid or missing bearer token).
415Unsupported media type (invalid file format, only PNG is allowed).
403Forbidden (insufficient permissions).
404Not Found (invalid merchant reference).
500Internal Server Error (unexpected error).

Notes

MerchantLogo must be PNG format, otherwise the request will fail with a 415 Unsupported Media Type. The generated QR code is time-limited based on the DurationInSeconds parameter. Always store and track the transactionReference for reconciliation.

Webhook Payload (JSON)

{
  "accountNumber": "0123456789",
  "remarks": "Payment for order #INV-1029",
  "transactionAmount": 15000.00,
  "settledAmount": 14500.00,
  "feeAmount": 400.00,
  "vatAmount": 100.00,
  "merchantReference": "INV-1029",
  "transactionReference": "TXN-20260201-ABC123",
  "transactionDateTime": "2026-02-01T14:32:45Z",
  "notificationType": "TRANSACTION",
  "status": "SUCCESS"
}

Field Definitions

Field NameTypeRequiredDescription
accountNumberstringNoCustomer or virtual account number associated with the transaction
remarksstringNoAdditional transaction description or narration
transactionAmountdecimalYesTotal amount paid by the customer
settledAmountdecimalYesNet amount settled to the merchant after deductions
feeAmountdecimalYesTransaction processing fee charged
vatAmountdecimalYesVAT applied to the transaction fee
merchantReferencestringNoMerchant's unique reference for tracking the transaction
transactionReferencestringYesUnique reference ID for the transaction
transactionDateTimedatetime (ISO 8601)YesTransaction timestamp
notificationTypestringYesType of webhook notification (e.g. TRANSACTION, REVERSAL)
statusstringYesTransaction status (SUCCESS, FAILED, PENDING)

Environments

  • Sandbox: https://apidev.routepay.com
  • Production: https://api.routepay.com

Postman collection & developer tools

A Postman collection with the full set of requests (auth, bills, payment) is available to import into Postman.

Use the environment variables baseUrl, ClientId, ClientSecret, and accessToken to run the collection.

You can also use jump to the API Reference to view the full set of requests.

Security & best practices

Do not embed ClientSecret in client-side code. Keep it on your backend.

Use TLS for all traffic (HTTPS required).

Store access tokens securely and refresh when expired.

Validate webhook/callback signatures if RoutePay issues callbacks (contact support to confirm your account's webhook setup).

Support & contact

If you need help or notice unexpected behaviour, capture and share the following when contacting RoutePay support (support@routepay.com):

  • merchantReference and transactionReference
  • Timestamp of the request (UTC)
  • x-correlation-id header (if present)
  • Full request/response bodies (redact sensitive card data)
